LÕI LỌC 0.2 MICRON

XUẤT XỨ: GRACE-FITER - TAIWAN

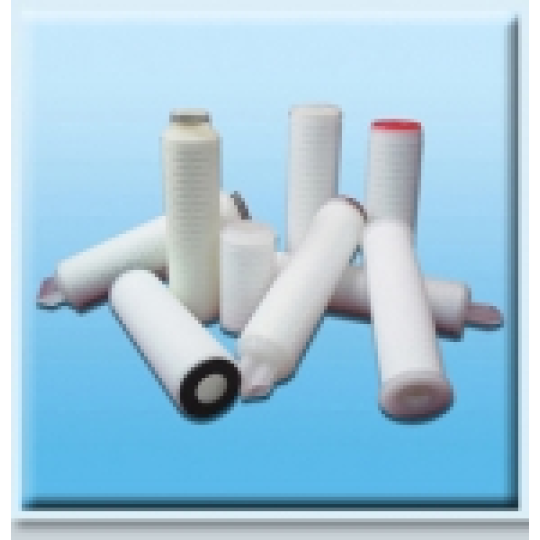

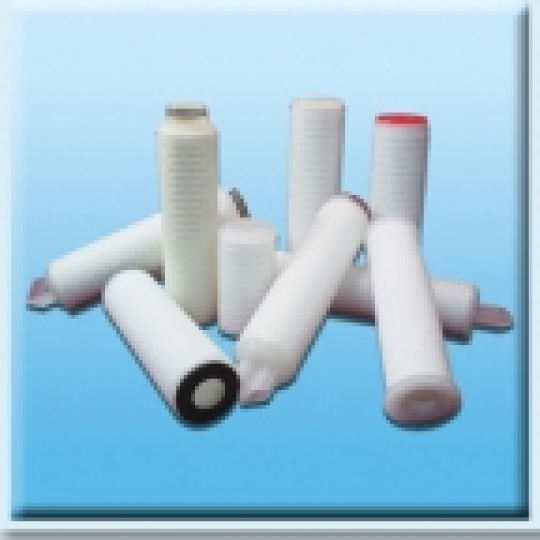

Pleated Membrane Filter Cartridge is designed exclusively for high flow rate, great efficiency, superior precious and absolute pore rating applications to use in precise process.

Length 5、10、20、30、40 inch

End Cap DOE, 2-222 Flat, 2-222 Fin, 2-226 Flat, 2-226 Fin and other special sizes

O-ring EPDM、Viton、Silicone、Teflon/Viton

Application Simiconductor, Optoelectroics, Chemicals Manufacturing, Beverage, Wine, Pharmaceutics, Ultra Pure Water, Medical Water and PCW etc.

Material Polyropylene:

Rating 0.1, 0.2, 0.5, 0.8, 1, 2, 3, 4, 5, 10, 20, 30, 40, 70 μm Micron

Max Differential Pressure 90℃ → 1.4kg/cm² 20℃ → 4.8kg/cm²

Material PTFE Micron:

Rating 0.1, 0.2, 0.45, 0.65 μm Micron

Max Differential Pressure 90℃ → 1.4kg/cm² 20℃ → 4.1kg/cm²

Material Polyethersulfone:

Rating 0.03, 0.05, 0.1, 0.2, 0.45, 0.65 μm Micron

 Max Differential Pressure 90℃ → 1.2kg/cm² 20℃ → 3.4kg/cm²

Material PVDF:

Rating 0.1, 0.2, 0.45, 0.65, 1, 10 μm Micron

Max Differential Pressure 90℃ → 1.4kg/cm² 20℃ → 4.1kg/cm²

Material Nylon:

Rating 0.05, 0.1, 0.2, 0.45, 0.65μm Micron

Max Differential Pressure 90℃ → 1.4kg/cm² 20℃ → 3.4kg/cm²

Material All PVDF Micron:

Rating 0.1, 0.2, 0.45, 0.65, 1, 10 μm

Max Differential Pressure 90℃ → 2.2kg/cm² 20℃ → 5.8kg/cm²
